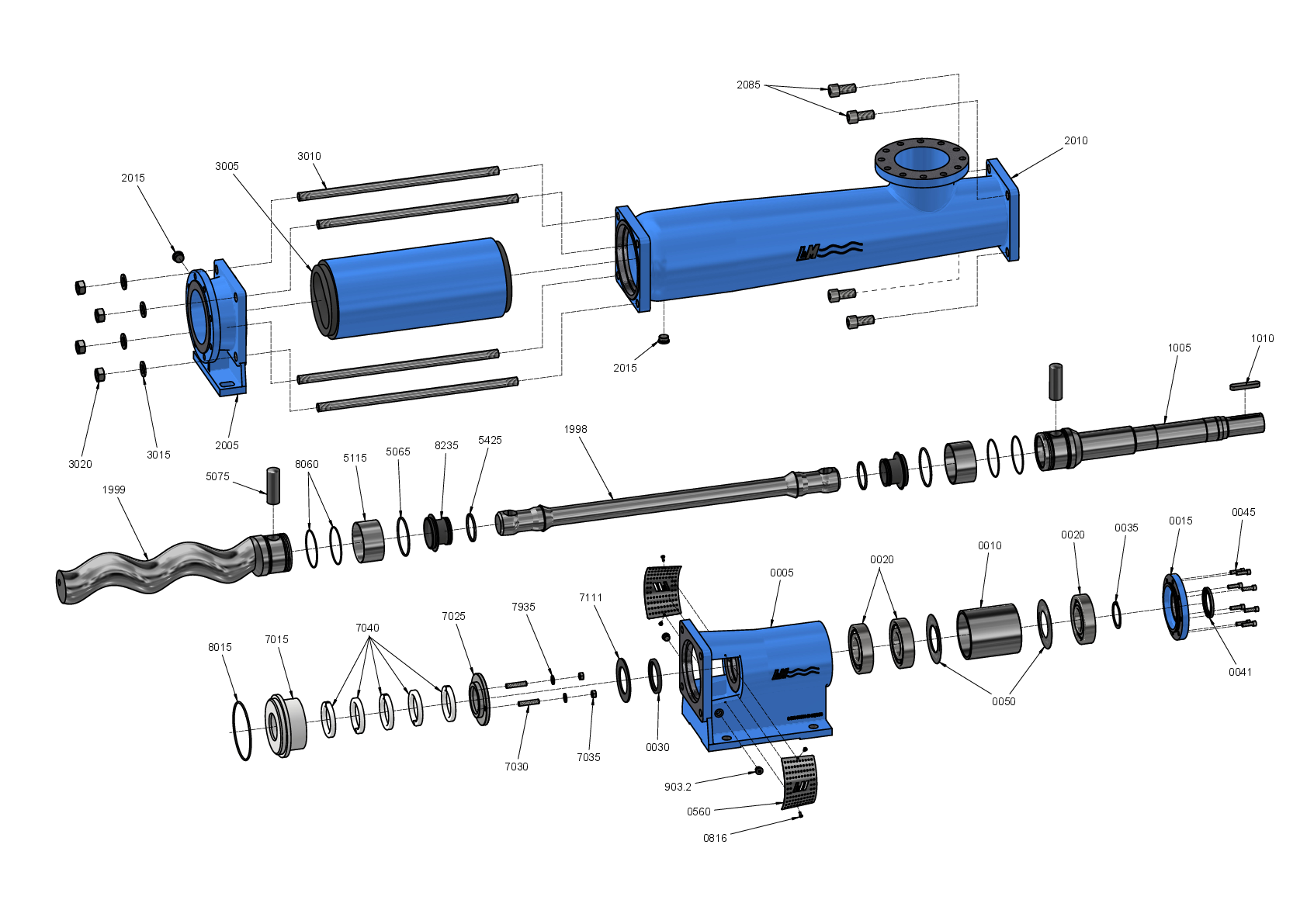

Pos.
Designation
Quantity
0005
bearing housing
1
0010
distance sleeve
3
0015
bearing cover
2
0020
roller bearing
2
0030
radial seal ring
1
0035
circlip
1
0041
radial seal ring
1
0045
cylindrical head screw
6
0050
grease retaining ring
2
0055
support disc
1
0560
protection
2
0816
screw
2
1005
drive shaft
1
1010
key
1
1998
coupling rod
1
1999
rotor
1
2005
end flange
1
2010
pump casing
1
2015
screw plug
1
2020
screw
4
2025
spring washer
4
2030
nut
8
3005
stator
1
3010
tie bolt
4
3015
spring washer
4
5065
circlip
2
5075
pin
2
5115
sleeve
2
5425
clamp ring
2
7015
stuffing box housing
1
7025
gland
1
7030
bolt
2
7035
nut
2
7040
packing rings
6
7111
thrower
1
8015
o-ring
1
8060
o-ring
4
8235
pin joint seal
2

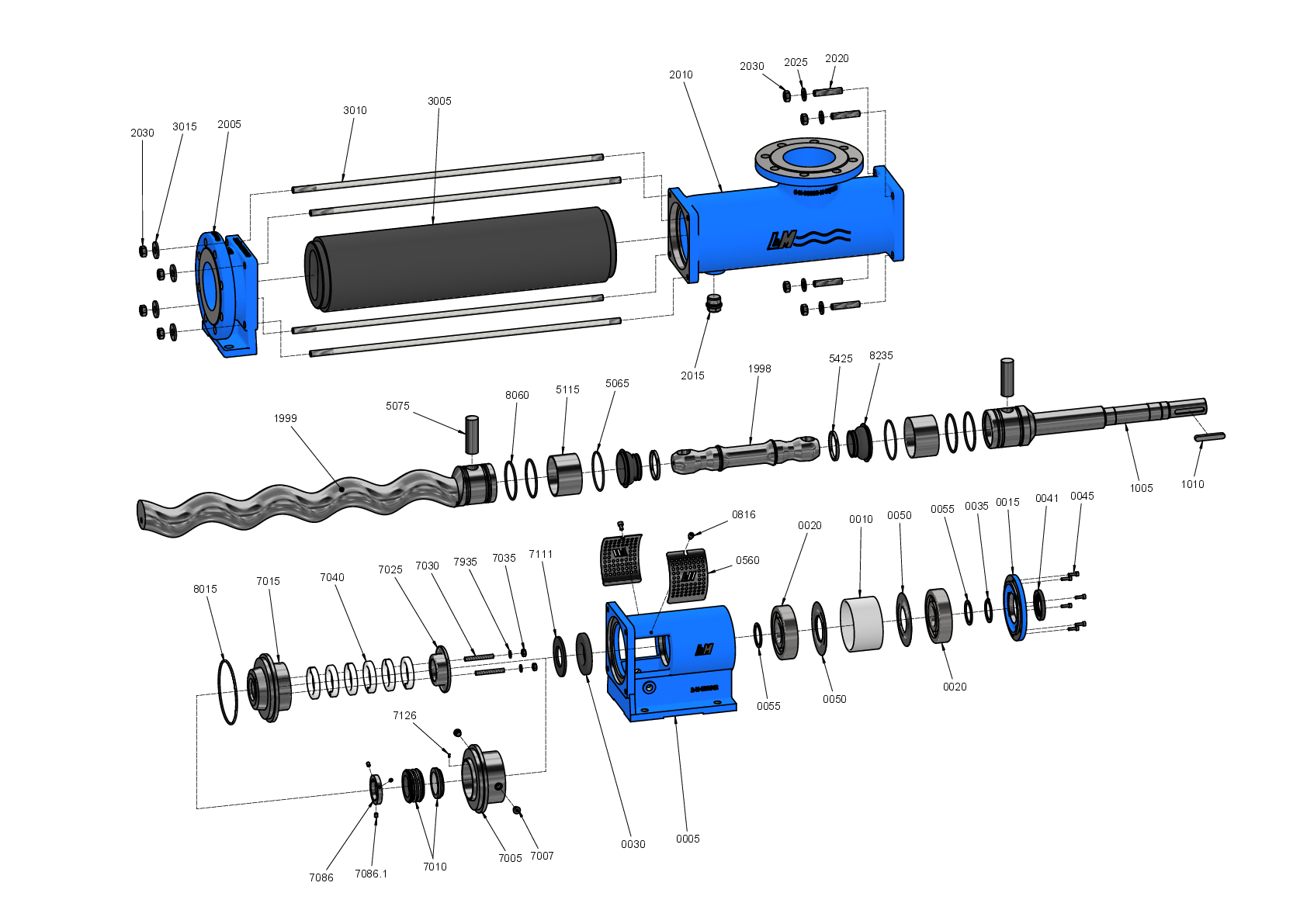

Pos.
Designation
Quantity
0005
bearing housing
1
0010
distance sleeve
1
0015
bearing cover
1
0020
roller bearing
3
0030
radial seal ring
1
0035
circlip
1
0041
radial seal ring
1
0045
cylindrical head screw
8
0050
grease retaining ring
2
0560
protection left/right
2
0560
protection left/right
2
0816
screw
4
0816
screw
4
1005
drive shaft
1
1005
drive shaft
1
1010
key
1
2005
end flange
1
2015
screw plug
2
2085
cylindrical head srew
4
3005
stator
1
3010
tie bolt
4
3015
spring washer
4
3020
nut
4
5065
circlip
2
5075
pin
2
5115
sleeve
2
5425
clamp ring
2
7015
stuffing box housing
1
7025
gland
1
7030
screw
2
7035
nut
2
7040
packing rings
5
7111
thrower
1
8015
O-ring
1
8060
O-ring
4
8235
pin joint seal
2
The OEM reference numbers, manufacturer brand names and type designations are for information purposes only and do not imply that they come from the manufacturer mentioned. All items described in more detail here are Lotzer & Mühlenbruch's own products and are marked accordingly. There is no connection with the OEM original. The photos, drawings, illustrations, brand names, descriptions and numbers used here are only for identification purposes.
